| Name | Qty. |
| IM15 Unattended Payment Terminal | 1 |
| M4 Nuts | 4 |
| M4 Screws | 4 |
| Mounting Bracket | 1 |
PRODUCT DESCRIPTION
Front View
- LCD touchscreen
- Speaker
- Proximity and light detector
- LED status indicator
- Camera flash LED
- Camera lens
Back View
- Digital IO port
- 4G antenna connector (SMA)
- MDB port
- Status LED
- USB Type-A port
- Back cover
- Reset button
- USB Type-C port
- RJ45 port (RS233)
- RJ45 port (Ethernet)
INSTALLATION
SIM Cards

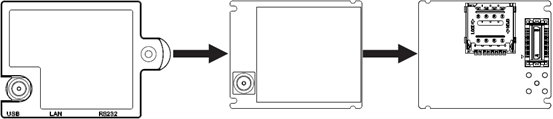

Remove the back cover to reveal the 4G board. Hold the SMA connector and pull the 4G board away from the body of the IM15. Flip the 4G board over to access the SIM card slot. Open the card slot and insert the card into the slot with the contacts facing towards the 4G board and with the clipped corner of the card aligned with the slot, then lock the slot with the card inside.
SAM Cards
The 2 SAM cards slots of the IM15 can be seen while the back cover and 4G board are removed. To install a SAM card, open the card slot and insert the card into the slot with the contacts facing towards the IM15 and with the clipped corner of the card aligned with the slot, then lock the slot with the card inside.
Note: Do not power on the IM15 while installing or removing SIM or SAM cards. To reassemble the device, slot the 4G board into the board to board connector while aligning 4 notches on the board with 4 plastic tabs on the body of the IM15, then replace the back cover and screw it in place.
Device Dimensions
Note: Device dimensions are presented in millimeters (mm).
Device Installation
- The back face of the installation should have four stud bolts corresponding to the mounting points located on mounting bracket. Slide the mounting bracket into place with the orientation shown in the figure above and then fix it in place with four M4 nuts.
- Slide the IM15 unit into place with the orientation shown in the figure above. The back portion of the device should rest securely inside the mounting bracket.
- Apply a torque of 0.6 to 0.8 Nm to each of the four M4 screws to secure the IM15 unit to its mounting bracket.
Instructions
Power on: Plug the IM15 into an appropriate power source (7 to 48 VDC) via the MDB port, the digital IO port, or the RS232 RJ45 port.
Power off: Disconnect the IM15 from the power source it is connected to.
Contactless Transactions
When the device is ready to accept a contactless transaction, the contactless icon should appear on screen. Orient the card or NFC device parallel to the screen and then hold it at a distance of 4 cm or less directly above the contactless icon.
Code Scanner Transactions
When the device indicates on screen that it is ready to scan a 1D or 2D code, orient the code parallel to the code scanning camera and then place it directly in front of the camera.
Environmental Parameters
- Operating Temperature: -20℃～60℃(-4℉～140℉)
- Storage Temperature: -30℃～70℃(-22℉～158℉)
- Humidity：5%～90% (non-condensing)
Maintenance and Usage
- If repairs are required, contact PAX support.
- If any cables become damaged, seek a replacement.
- Do not insert unknown materials into any port on the IM15, this may cause serious damage to the device.
- Only qualified personnel should repair this product.
- The IM15 is designed for outdoor use; however, during normal use its surface should still be keep clear of dirt and possible liquid contaminants.
- While the IM15 is designed to resist ingress of dust and liquids, it is not designed to resist pressurized liquids such as water hoses. Keep the back of the device away from dust and liquids as much as possible.
- Make sure the various cables connect to provide the appropriate voltages at the proper pins.
